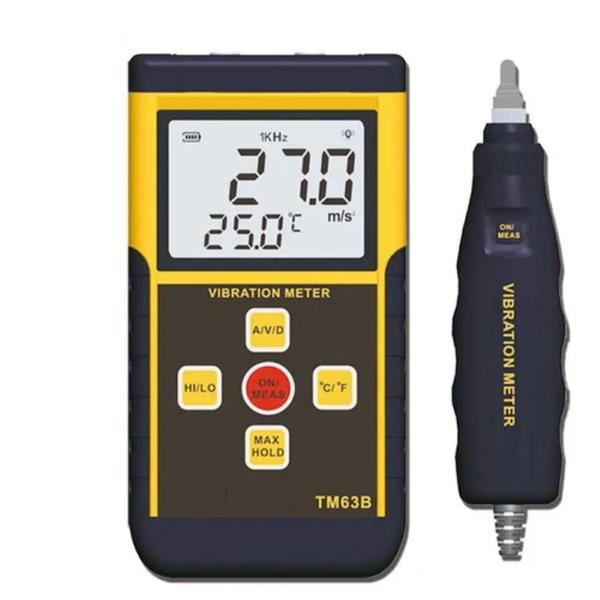

Digital Vibration Meter
INR 28910
Enquire
Description
HIGH-PRECISION VIBRATION METERS Feature Measures velocity, acceleration and displacement along with the temperature, comes complete with the magnetic base. LCD displays measurement result and conditions directly. * Measures acceleration (m/s2 peak), velocity (mm/s RMS) and displacement (mm p-p). Selective vibration characteristic & uses hi- sensitive vibration sensor for accurate measurements. Equipped with two probes (SHORT and LONG) to adapt to the different measurement requirements. Magnetic probe is provided, to be used for holding the sensor in uneasy conditions. Specification Sensor Type: Piezoelectric Ceramic Accelerometer (shear-type) Acceleration: 0.1~199.9m/s² Peak 10Hz~1KHz (LO) 1KHz~15KHz (HI) Velocity: 0.1~199.9mm/s 10Hz~1KHz Displacement: 0.001~1.999mm 10Hz~1KHz Accuracy: ± 5% H±2 digits LCD display: 3 1/2 digits display Response Time: 1 seconds Auto Off: √ Battery Level: √ Backlight: √ Power supply: 9V 6F22 Battery
