Description

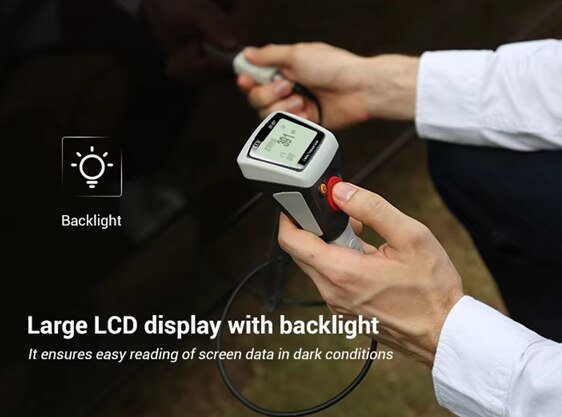

COATING THICKNESS METER WITH EXTERNAL SENSOR Features Non-magnetic coatings (e.g. paint, zinc) on steel, Insulating coatings (e.g. paint) on no-ferrous metals, No-ferrous metals coatings on insulating substrates, Menu operation system, Two working modes: DIRECT and GROUP mode, Statistic Display: AVG, MAX, MIN, NO., S.DEV, One point calibration, two points and basic calibration easily, Delete single readings and all group readings easily, Low battery, error indication, Memory for 2500 readings (50 GROUP readings), 4 levels of battery indication, Error indication, Bluetooth interface, Easily adapt to lighting conditions with 8 levels of backlight Specification Principle: FE/NFE Measuring Range: 0~2000 um Resolution: 0.1 um Accuracy: 1-2% um / Guaranteed Tolerance: (+/- 2%+2) um / Repeatability: (+/- 1%+1) um / Low Range Precision: 0.1 um / Minimum Curvature Radius: (1.5mm F) & (3mm N) Diameter Of Minimum Area: (7mm F) & (5mm N) Basic Critical Thickness: (0.5mm F) & (0.3mm N) Working Environment: -20C to 80C / Waterproof: IP54 ORIGIN: GABY INSTRUMENTS
